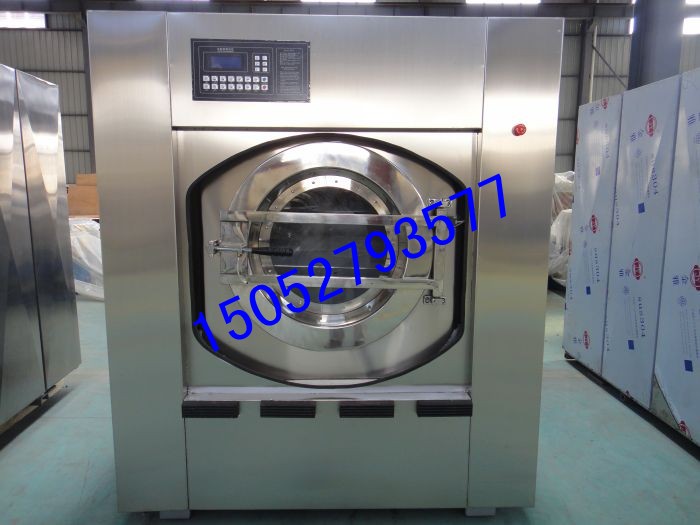

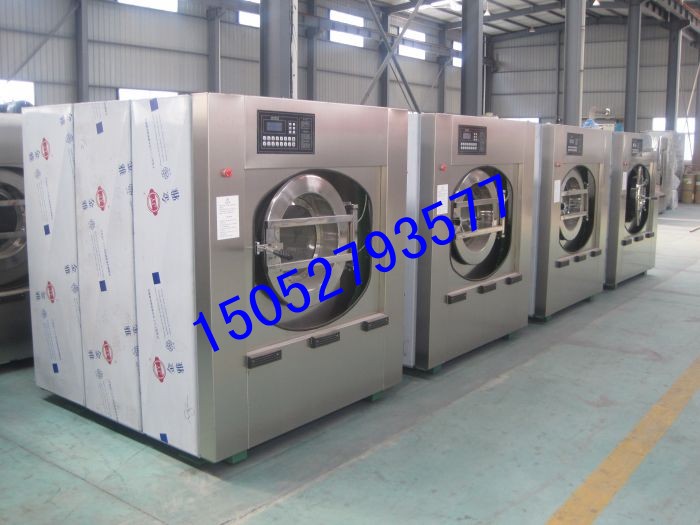

| 医药高新区威士洁机械厂生产的酒店布草洗脱机远销东南亚和中东地区 布草洗脱机技术参数： | 型号Type | XTQ-15 | XTQ-20 | XTQ-30 | XTQ-50 | XTQ-70 | XTQ-100 | | 额定容量Rated capacity(kg) | 15 | 20 | 30 | 50 | 70 | 100 | | 最小Min.(kg) | 10 | 15 | 25 | 35 | 50 | 80 | | 最大Max.(kg) | 15 | 20 | 30 | 50 | 70 | 100 | | 内胆尺寸Inner dimension | | | | | | | | 直径Diameter(mm) | 650 | 750 | 895 | 1080 | 1200 | 1200 | | 径深Diameter deepness(mm) | 450 | 450 | 450 | 625 | 650 | 850 | | 体积Volume(Lit) | 149 | 199 | 332 | 572 | 735 | 995 | | 外形尺寸Overall dimension | | | | | | | | 高Hight(mm) | 1510 | 1600 | 1700 | 1900 | 1960 | 2000 | | 长Length(mm) | 1010 | 1150 | 1550 | 1850 | 1750 | 2050 | | 宽Width(mm) | 1100 | 1110 | 1550 | 1650 | 1750 | 1750 | | 转笼速度Drum speed | | | | | | | | 洗涤转速Washing rotate speed(r/min) | 50 | 50 | 36 | 36 | 35 | 31 | | 均布转速Uniformity speed(r/min) | 90 | 90 | 72 | 75 | 70 | 65 | | 中脱Mid speed(r/min) | 450 | 450 | 420 | 380 | 350 | 310 | | 高脱High speed(r/min) | 900 | 900 | 780 | 760 | 680 | 680 | | 排水阀Draining valve | | | | | | | | 排水阀Draining valve(mm) | φ70 | φ70 | φ76 | φ90 | φ90 | φ90 | | 进水管Filling with water | | | | | | | | 热水管Hot water pipe(") | 3/4 | 3/4 | 1 1/2 | 1 1/2 | 1 1/2 | 1 1/2 | | 冷水管Cold water pipe(") | 3/4 | 3/4 | 1 1/2 | 1 1/2 | 1 1/2 | 1 1/2 | | 蒸汽管Steam pipe | | | | | | | | 蒸汽管Steam pipe(") | 3/4 | 3/4 | 3/4 | 1 | 1 | 1 | | 每缸耗气量Air consume capacity(kg) | 15 | 18 | 20 | 30 | 45 | 50 | | 洗涤耗水量Washing water consume capacity(kg) | 300 | 400 | 500 | 750 | 1200 | 1500 | | 电源Power supply | | | | | | | | 电源Power supply | 380V+N-3PH-50HZ | | 电机功率Motor power(kw) | 1.5 | 2.2 | 3 | 4 | 5.5 | 7.5 | | 电加热功率Electric heat up consumption(kw) | 10 | 15 | 20 | 30 | 45 | 60 | | 机器重量Machine weight | | | | | | | | 重量(约)Weighe(kg) | 950 | 1200 | 1500 | 2300 | 2500 | 3000 | |
