 供应配额空气包覆纱机空包机网络丝机(图)
 发布时间:
 有效时间: 长期有效
 公 司 名:
 所 在 地:
 联 系 人:
联系方式
  详细资料
所属类型: 纺机,纺纱机械
产品代码: 8011
产品品牌: 万久精工
产品系列: 空包机

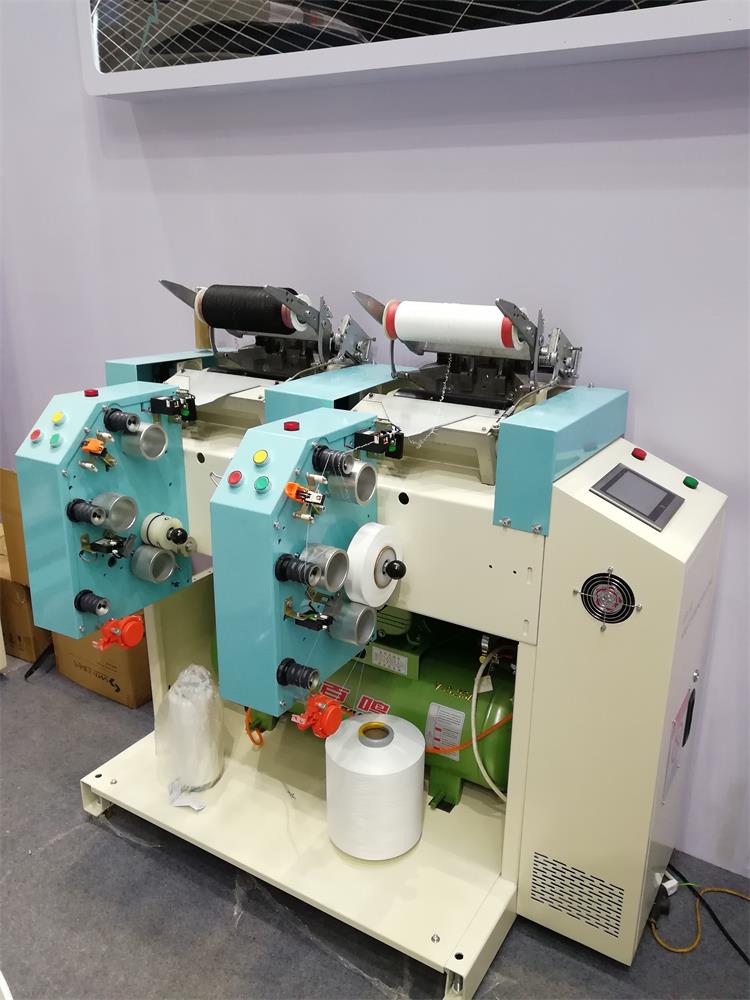

LB-102 空包机

LB-102 AIR COVERING MACHINE  LB-102 空包机

该机用于生产空气包覆纱,氨纶(莱卡)与涤纶,锦纶,丙纶的空气包覆。该机还具有倒纱机和并纱机的功能。

LB-102 空包机使用变频慢速启动,性能稳定,操作简便,实现单锭控制,单锭计长(到达设定长度自动停机),满纱,断纱自动停机。

机器性价比高(产量大,投资小,生产便捷,各锭可以生产不同型号的纱线),产品广泛应用于无缝内衣,袜子,手套 等等。

机器也可以根据需要,生产涤纶长丝网络点。

特点 单锭单控,配有单独的气嘴, 单独的供油装置,单独的纱线感应装置(3个感应器),单独的张力设置。

 This machine is used to make air covered yarn, Spandex/Lycra, Polyester yarn, Nylon yarn, Polypropylene yarn air covering with air jet. It also can be used as rewinding machine and doubling machine.

The machine starts slowly with inverter, stable performance, easy operation. Individual spindle control, set length stop. When the yarn is full on the bobbin or yarn broken, the spindle will stop automatically.

It’s a highly cost effective machine ( small investment, large capacity, convenient production and different spindle can produce different yarn size). The final product suits for the seamless underwear, socks, gloves and so on.

Machine can be used to make for the FDY intermingle point. (option)

Features: Each Spindle with Air Jet, Individual Oiling System, Yarn Sensor Device and Tensioner.

 技术参数:Technical Parameter:

型式

Type

单面单层

One side one layer

锭数

The number of Spindles

2/节 (标准24锭)

2 spindles/ section (standard  24 spindles)

线速度

Yarn Speed

500~700m/minutes, MAX 1000m/minutes

拉比

Draw Ratio

1.5~5

摩擦轮直径

Friction Roller Diameter

100mm

气量配置

Working pressure of air jet

0.6Mpa

行程长度

Traverse Length

210mm or 270mm

收卷管尺寸

Take-up Bobbin Size

Φ69×L230mm  or Φ69×L290mm  0°0

单锭功率

Power /spindle (KW)

0.273kw (250w+9w+9w+5w)

一节尺寸(2锭)

Machine Size

1200×900×1500mm/section

重量(一节/两锭)

Weight

260kgs/section
