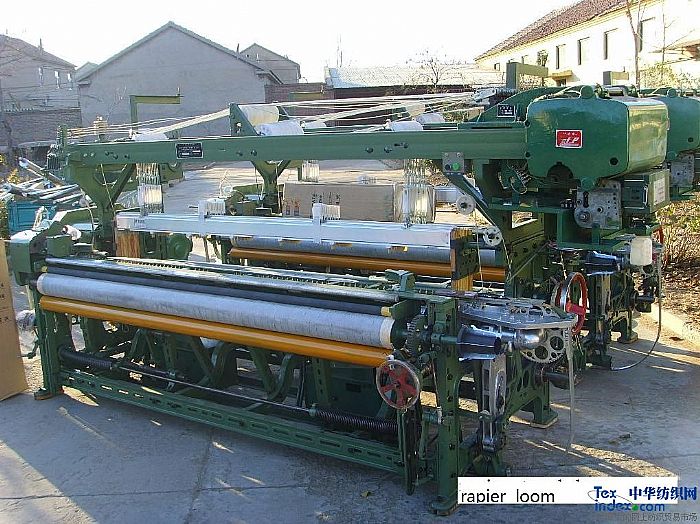

GA747 Flexible Rapier Loom





 This machine has wider applicability and stronger ability in weaving heavy fabrics,used to weave tabby,twill,satin, and jacquard for cotton-hemp,chemical fibre and spun-silk. it adopts flexible rapier ribbon in weft insertion, ASGT211 dobby shedding,six-color weft selecting, out-loom let-off and centralized oiling. it can locate and self-stop when occuring weft-breaking, warp-breaking and weft accumulator malfunction. it adopts KJ indicating lamp to indicate and adopts light-weight, high-strength carbon fibre compound material and aluminum ally material, with simple and reliable structure. Moreover,its machine frame and warp let-off structure is as common as that of GA615 shuttle loom.

.Principal performance and specifications

1.Working Width:  135cm 180cm　200cm　230cm　250cm　280cm 340cm
2. Working Speed:145-190 r/min
3. Yarn:  Cotton hemp, chemical fiber & blending
4. Weaving yarn size: chemical fiber 75-1800den., others: 13-195tex
5.Number of  head frames : 16  frames
6. Color number of weft yarm: six colors (dobby control)
7. weft density: 30-800 threads/10cm
8. selvedge type: doup edge
9. the diameter of warp flanges:Φ550mm-Φ600mm
10. the diameter of fullcloth:Φ400mm
11. Warp stop motion: six-row electrical control.
12. Weft stop motion: piezoelectric ceramics
