长期供应悬臂式热熔胶涂布机_印染,后整理加工

所属类型：	印染,后整理加工
产品代码：	RTB
产品品牌：	旭腾热熔胶涂布机
产品系列：	热熔胶涂布机热熔胶复合机

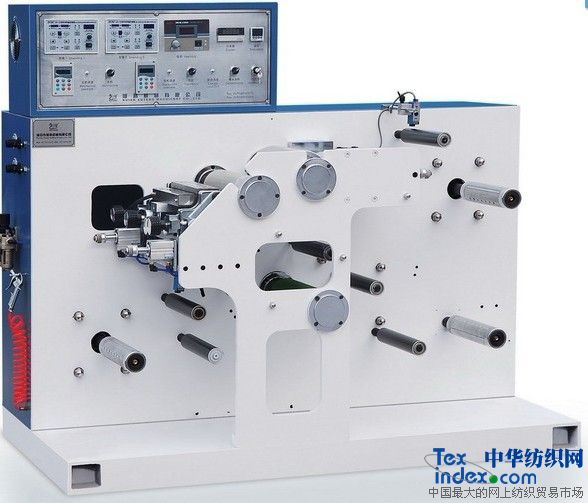

RTB悬臂式热熔胶涂布机

主要特点：

1. 采用悬臂机架结婚，方便材料的装卸。

2. 涂布宽度可放大到400mm，是一台标准的一人操作的理想设备。

应用范围：RTB悬臂式热熔胶涂布机适用于生产美纹纸胶带，铝箔胶带、医用敷料胶带、不干胶商标等。

RTB Cantilever Type Hot Melt Coating Machine

Applied Range:

RTB Cantilever Type Hot Melt Coating Machine is suitable for making label paper, Adhesive Label, Adhesive sticker, self-adhesive paper, masking tapes, Aluminium Foil Tapes, Medical Tapes, Adhesive Trademark and so on.

Main characteristic

RTB Cantilever Type Hot Melt Coating Machine adopts Cantilever Type structure for loading and unloading the material easily and can coat the material up to a width of 400mm. so it is standard and ideal equipment for one-person operation. If it is equipped with the tension controller of magnetic powder, you can obtain high production efficiency.

Technical parameters

Model	RTB
Max. Coating width	50-400mm
Coating Weight	15-200g/m²
Max working speed	50m/min
Unwinding Diameter	450mm
Rewinding Diameter	450mm
Unwinding device	2 sets
Rewinding device	1 set
Correction Edge Device	2 sets
Length	1850mm
Height	1650mm
