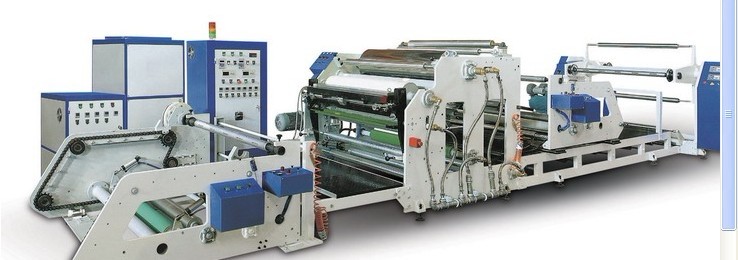

RT100高速热熔胶涂布机 主要特点: 1. 100m/min的高速设计已达到国际先进水平。 2. 收放卷全部采用双工位设计,并配置了半自动接纸装置。可以实现不停机换卷,减少了由于换卷重新开机所造成的浪费。 3. 放卷全部采用EPC气敏纠编装置。 4. 高精度的硬质合金钢模头确保客户能得到最佳的涂布效果。 应用范围:RT100系列热熔胶涂布机可以用于生产:双面胶带、布基胶带、双面泡棉胶带、清洁胶带、牛皮纸胶带、美纹胶带、铝箔胶带、纤维胶带、导电布、不干胶商标、广告写真耗材等。 RT100 Hot Melt Coating Machine Main Characteristic: 1. 100m/min high speed has already reached the international most advanced level. 2. Rewind and unwind both adopt double position and equip with semi-automatic to connect paper device, RT100 hot melt coating machine can change the rolls of base material nonstop. It will reduce the waste when the machine must rerun in order to change the rolls. 3. Rewinding and unwinding adopts EPC correct device. 4. High precision alloy steel die head make sure the customer can get the best coating effection. Range of application: RT100 Hot Melt Coating Machine is used to make double-sided adhesive tapes, cloth-base tapes, double-sided foam tape, cleaning tape, kraft paper tape, masking tape, aluminum foil tape, fiber tape, medical dressing tape, adhesive tapes, advertisement jet printing material, etc. Technical parameters Model | 型号 | RT100 | Coating width | 涂布宽度 | 400-2500mm | Coating weight | 涂布量 | 15-200g/㎡ | Coating speed | 机械速度 | 100m/min | Unwinding dimensions | 放卷直径 | 1000mm | Rewinding dimensions | 收卷直径 | 1000mm | Correction device | 纠编装置 | 2 set | Length of machine | 长度 | 10500mm | Height of machine | 高度 | 1800mm |
|
