长期供应热熔胶涂布机热熔胶复合机厂家_印染,后整理加工

所属类型：	印染,后整理加工
产品代码：	RT
产品品牌：	旭腾热熔胶涂布机
产品系列：	热熔胶涂布机热熔胶复合机

主要特点：
1.RT热熔胶涂布机主机速度与供胶量采用交流控制，胶量与速度可手动调整也可自动同步跟踪。
2.采用智能PID温度控制系统，温度控制非常准确，误差在1℃以内。
3.热熔胶涂布机熔胶箱涂有特氟龙防粘涂层，有效防止热熔胶的炭化现象。
4.该热熔胶涂布机配有精密计量的齿轮泵，供胶量更加稳定。
5.RT热熔胶涂布机的高精度合金模头保证了高品质的涂布效果。
6.本热熔胶涂布机高效的冷确装置确保了基材的应用范围。

应用范围：
RT热熔胶涂布机主要应用于生产双面胶带、布基胶带、双面泡棉胶带、清洁胶带、牛皮纸胶带、美纹纸胶带、铝箔胶带，纤维胶带、鞋材、医用敷料胶带等。

技术参数：

型号	RT
涂布宽度	400-2500mm
涂布量	10-200g/㎡
涂布速度	50M/min
放卷直径	1000mm
收卷直径	700mm
纠偏装置	1sets
长度	4800mm
高度	1350mm

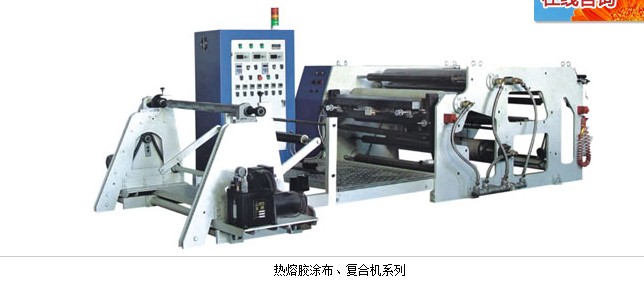

RT Hot Melt Coating Machine

Main characteristic:
1. An Ac converter control is used for both speed and quantity of glue feeding for which both automatic synchronous tracking and manual control are available.
2. RT Hot Melt Coating Machine adopts intelligent PID temperature control system, it can control the temperature exactly and the error is with in 1℃
3. The glue melting oven is coated with the antisticking layer, efficacious prevent the hot melt adhesive against carbonization.
4. Collocate the precision metric gear, make it more steady to produce the adhesive.
5. The high precision of alloy steel spray head has guaranteed high-quality coating result.
6. High-efficiency cooling device insure the applicable range of the basic materials.
Range of application:
This hot melt coating machine is suitable for producing double-side tapes,duct tapes , double-side sponge adhesive tape, clean adhesive tape, masking adhesive tape, Alu. Foil tapes, fabric tapes, shoes materials and medicine dressing tapes. etc.

Techinical parameters：

Model	RT
Coating Width	400-2500mm
Coating Weigh	10-200g/㎡
Coating Speed	50M/min
Unwind Diameter	1000mm
Rewind Diameter	700mm
Correction Device	1sets
Length	4800mm
Height	1350mm
