主要特点: 1.延长第二放卷到复合之间的距离的设计使得纠边效果更加理想。 2.该热熔胶涂布机放卷全部采用EPC气敏纠边。 3.放卷配置了电动升降料的功能 应用范围: RTS热熔胶双放卷涂布机主要应用于不干胶制品,如不干胶商标纸,双面胶带、泡棉胶带、布基胶带、牛皮纸胶带、美纹纸胶带、纤维胶带等 技术参数: 型 号 | RTS | 涂布宽度 | 400-2500mm | 涂 布 量 | 10-200g/㎡ | 涂布速度 | 80M/min | 放卷直径 | 1000mm | 收卷直径 | 1000mm | 纠偏装置 | 1sets | 长 度 | 8400mm | 高 度 | 2350mm |

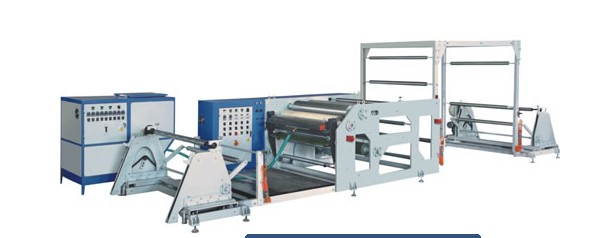

RTS Hot Melt Coating Machine Main characteristic: 1. The design of extending distance between second unwind and compound obtains more ideal deviation correction result. 2. Unwind adopts PEC deviation correction. 3. Unwind configures electromotion load and unload material function. Range of application: This hot melt coating machine is suitable for producing double-side tapes, fabric tapes, double-side sponge adhesive tape, clean adhesive tape, masking adhesive tape, Alu. Foil tapes, etc. Techinical parameters : Model | RTS | Coating Width | 400-2500mm | Coating Weight | 10-200g/㎡ | Coating Speed | 80M/min | Unwind Diameter | 1000mm | Rewind Diameter | 1000mm | Correction Device | 1sets | Length | 8400mm | Height | 2350mm |
|
