长期供应JC075型机械测长计数器_纺机,纺织配套设备

所属类型：	纺机,纺织配套设备
产品代码：	JC075型机械测长计数器
产品品牌：	青计
产品系列：

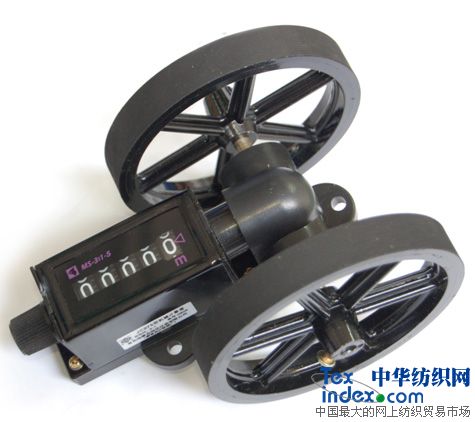

商品描述：产品名称：JC075型机械测长计数器　

工作原理及简介：JC075型机械测长计数器是用来测量长度的计数装置，该计数器是应用两个滚轮的定长来测量被测物的长度（即滚轮滚动1米，计数器显示1）。计数器设有回零装置。一个测量过程完成后，将计数器回零，可进行下一个测量过程。该计数器主要应用于纺织、造纸、印染、制革、薄膜等行业。

产品系列及相关技术参数：

型号	JC075
显示数字规格	高×宽， 6.5 mm×4.5 mm
工作温度	-10℃～+50℃
最大积算容量	99999
轮子转动距离(米)/显示数据	1:1
额定速度	500r/min
额定速度	500r/mm(滚轮)
可根据客户需要设计制作

产品安装尺寸图：

Product name: JC075 Mechanical Length-measuring Counter

Working principle & Introduction: JC075 mechanical length-measuring counter is a counting mechanism for length-measuring. It used the fixed length of two rolling-wheels to measure the length of the measured object. When the rolling-wheel rolls one meter( three rounds), the counter shows 1.The counter has a reset device. After a measuring-process is finished, the counter can be reset for the next measuring-process. This counter is mainly applied in the industries such as textile, paper-making, printing and dyeing, leather-making and film, etc

Technical parameters:

Model	JC075
Display digit size	H×W, 6.5mm×4.5mm
Ambient temperature	-10℃～+50℃
Max. capacity of accumulative size	99999
Rolling-wheel rolling distance(m) / Display data	1:1
Rate rotation speed	500r/min
Rate rotation speed	500r/min( rolling-wheel)
This product can be designed and manufactured according to customer’s needs.

Product installation & dimension diagram:
