| 所属类型： |
纺机,非织造布机械 |
| 产品代码： |
暂无 |
| 产品品牌： |
|
| 产品系列： |
|
|
|

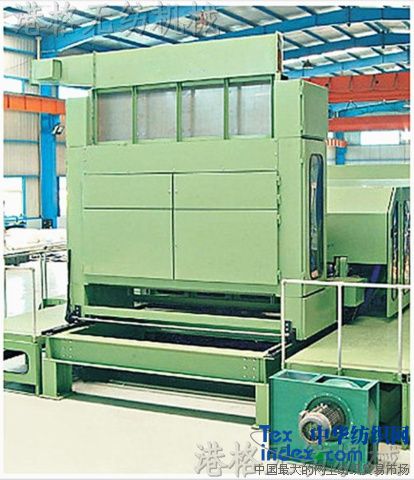

深圳市港格无纺机械科技有限公司——气压棉箱
气压棉箱用途特点：
本气压棉箱是国内最先进的喂棉机构，置于开松机后面，借输棉风机的作用，将充分开松的纤维均匀填充到混棉箱机上棉箱，再经过一对罗拉及打手作用，以及循环风机吹风作用，在下棉箱产生均匀筵棉，再由一对轧辊输出，供梳理机使用。
Characteristics of applications:
This machine is the most advanced apparatus in home country. It is located backwards from opening apparatusin order to deeply open and send uniformly to the storage of cotton with the help of winding effect of feeder and action of roller, beater and recycling winds. In the end, the sheet cotton made in bottom storage oven would be rolled out,to be carded in the following.
气压棉箱主要特征:
本机采用SCC控制技术自动控制，结合变频器达到连续均匀喂棉的效果，并可通过下棉箱气压导流梳的风门调节来调整横向均匀度,实现真正意义上的精确喂给。
The principle characteristic:
This machine is controlled by SCC system combined with variable frequency apparatus to feed continually and uniformly, furthermore the winding door with airpressured carding effect on bottom storage of cotton can improve the property of transverse uniformity. Above-mentioned would realize to feed accurately.
气压棉箱基本参数：
装机总功率：10.75kw
工作幅宽：根据要求可分为1300 1600 1800 2000 2500(mm)
下棉箱宽度：据产量要求，下棉箱厚度可在50-125毫米之间调节。
CV值：＜3％
 |
|
