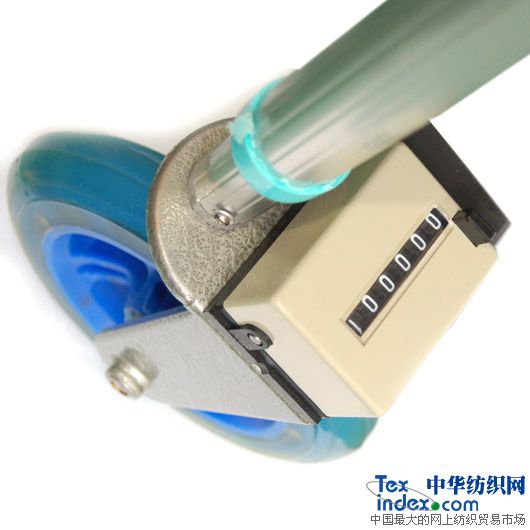

商品描述：产品名称：型测长计数器
工作原理及简介：JC106型机械测长计数器是用来测量长度的计数装置。该计数器是应用两个滚轮的定长来测量被测物的长度。主要应用于纺织、造纸、印染、制革、薄膜等行业。
产品系列及相关技术参数： 型号 | JC106 | 显示数字规格 | 高×宽， 4 mm×2.5 mm | 最大积算容量 | 99999.9 | 额定速度 | 400r/min（滚轮） | 轮子转动距离(米)/显示数据 | 1:1 | 可根据客户需要设计制作 |
产品安装尺寸图：
Product name: JC016 Length-Measuring Counter Working principle & Introduction: Model JC106 Length-Measuring counter is a counting mechanism for length-measuring. The counter uses two rollers to measure the length of an object. It is mainly applied in industries such as textile, paper-making, printing and dyeing, leather-making and film etc. Technical parameters: Type | JC106 | Display digit size | H×W: 4mm×2.5mm | Max. capacity of accumulative counting | 99999.9 | Rate speed | 400r/min(rolling-wheel) | Rolling-wheel rolling distance(m)/Display data | 1:1 | This product can be designed and manufactured according to customer’s needs. |
Product installation & dimension diagram:
 |
